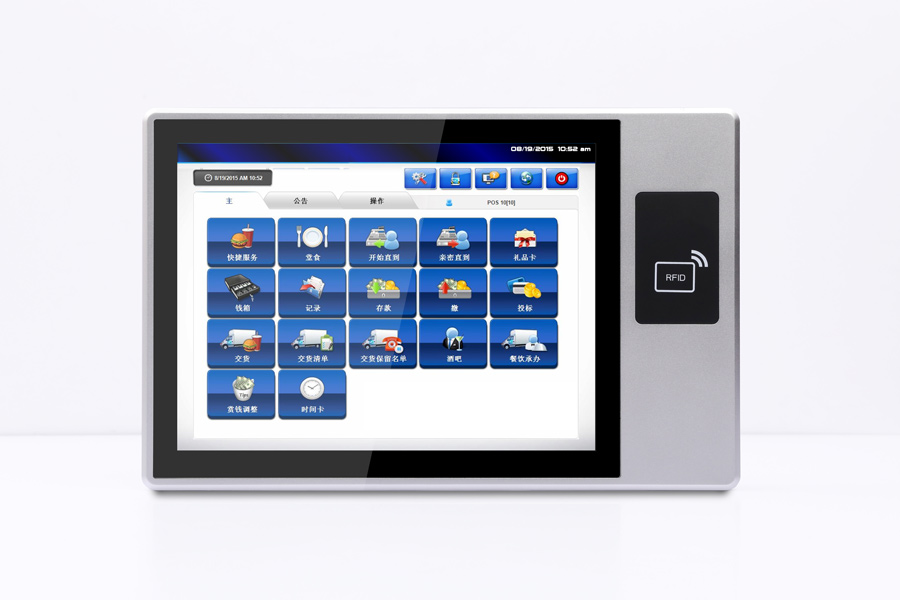

Industrial Panel PC KLD-1562B With RFID


· Aluminum die-casting chassis, fanless design
· 15inch LED TFT LCD, capacitive touch
· Intel Baytrail Celeron J1900 2.0-2.42G CPU
· 4*COM, 2*LAN, 3*USB2.0, 1*USB3.0
· 13.56MHZ RFID
· AT & ATX Model
· Front Panel IP65 Level
· DC 9~36V power input optional

DownloadKLD-1562B PDF Download

Product description

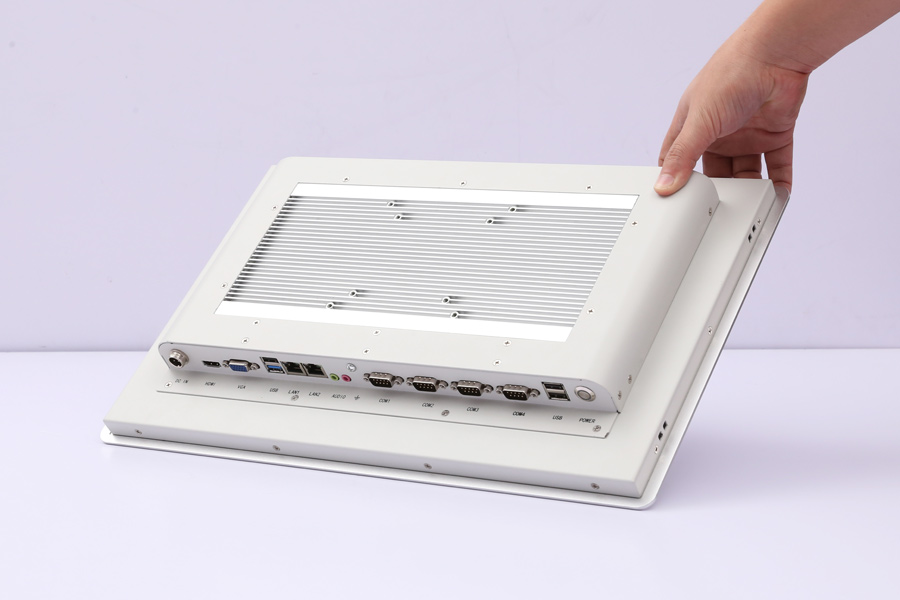

KLD-1562B is anintelligent, fanless panel PC, 15″ Panel PC equipped with an Intel® Bay Trail J1900 processor. Meeting the demands of harsh environments, in addition, the dual GbE LAN, 4xserial ports, 4xUSB ports, 1xRFID module make device connection and integration easy.


CPUIntel Baytrail-D Celeron J1900, 2.0~2.42GHz, 4cores, 4threads, 2M cache, 22nm,TDP 10W
Cooling SystemFanless
MemoryOnboard DDR3L, max 4GB
Storage1*mSATA SSD Full Size+2.5inch HDD
USB3xUSB2.0+1xUSB3.0, Type-A
COMCOM: 4xRS232, DB9, 2*RS485 optional
Dual Display1xHDMI (3840*2160 @30Hz) ; 1*VGA (1920*1200 @30Hz)
Audio:1×Mic-in, 1x Line-out
RFID1x RFID built in, 13.56MHZ, Front Panel, UHF optional
Network(LAN)2x 10/100/1000Mbps Ethernet
Input Voltage12V DC(Aviation Connector) , optional 9V-36V DC
Control SW/LEDPower Button, AT & ATX Model
Display Type:15inch TFT LED Panel( LED Backlight)
Max. Resolution:1024×768 / 4:3
Touch TypeCapacitive Touch
OS SupportWindows 7/ Windows 8/ Windows 10/ Linux
Operating Temperature-10℃~60℃(14~ 140 °F)(extend temperature optional)
Storage Temperature-20℃~70℃(-4 ~ 158 °F)
Front Panel ProtectionIP65 compliant

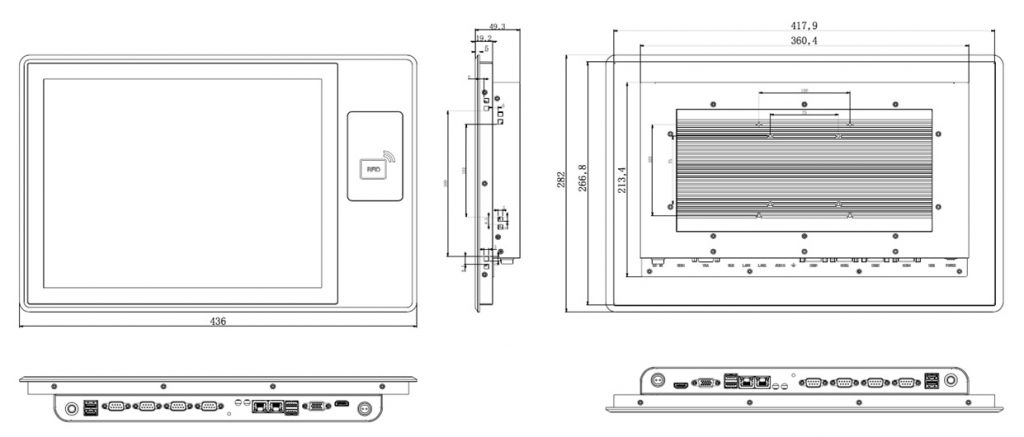

Dimensions(W*H*D): 436x282x49mm; Mounting Cut out (W*H): 417.9*266.8mm
Weight4.5KG (N.W.)
Custom ServiceCustom BIOS, System Encryption, Custom LOGO


Packing List Ordering Information
1x KLD-1562B KLD-1562B-1: Projected Capacitive Touch Version
1x Driver CD Operating Systems
1x Power Adapter WIN7 32bit 64bit ENG/CN
VESA Bracket WIN8 32bit 64bit ENG/CN
Optional accessories WIN10 32bit 64bit ENG/CN
Power Cable 2-pin 200cm Linux Ubuntu 12.04/16.04/18.04
