Fanless Industrial Panel PC KLD-1062E

Features

·   Aluminum die-casting chassis, fanless design
·   10inch LED TFT LCD, capacitive touch
·   1920*1200 wide screen
·   Intel Baytrail Celeron J1900 2.0-2.42G CPU
·   3*COM, 2*LAN, 3*USB2.0, 1*USB3.0
·   AT & ATX Model
·   Front Panel IP65 Level
·   DC 9~36V power input optional

DownloadKLD-1062E PDF Download

Product description

KLD-1062E is an intelligent, fanless panel PC, 10″ Panel PC equipped with an Intel® Bay Trail processor. Meeting the demands of harsh environments, in addition, the dual GbE LAN, 3 x serial ports, 4 x USB ports, make device connection and integration easy.

Specifications

CPUIntel Baytrail-D Celeron J1900, 2.0~2.42GHz, 4cores, 4threads, 2M cache, 22nm,TDP 10W
Cooling SystemFanless
MemoryOnboard DDR3L, max 4GB
Storage1*mSATA SSD Full Size
USB3xUSB2.0+1xUSB3.0, Type-A
COM3xRS232, DB9, 2*RS485 optional
Dual Display1xHDMI (1920*1200 @30Hz) ;  1*VGA (1920*1200 @30Hz)
Audio 1×Mic-in, 1x Line-out
WIFI:802.11a/g/n, 2×2 Antenna, 2.4/5 GHz, 300 Mbps Max Speed
Network(LAN)2x 10/100/1000Mbps Ethernet
Input Voltage12V DC(Aviation Connector) , optional 9V-36V DC
Control SW/LEDPower Button, AT & ATX Model
Display Type:10inch TFT LED Panel( LED Backlight)
Max. Resolution:1920×1200 / 16:9
Luminance(cd/㎡)300nits
Touch TypeCapacitive Touch
OS SupportWindows 7/ Windows 8/ Windows 10/ Linux
Operating Temperature-10℃~60℃(14~ 140 °F)(extend temperature optional)
Storage Temperature-20℃~70℃(-4 ~ 158 °F)
Front Panel ProtectionIP65 compliant
Dimensions(W*H*D): 263x175x60mm ; Cutting size: 248.9×160.5mm
Weight2.8KG (N.W.)
ColorBlack
MaterialAluminum
Custom ServiceCustom BIOS, System Encryption, Custom LOGO

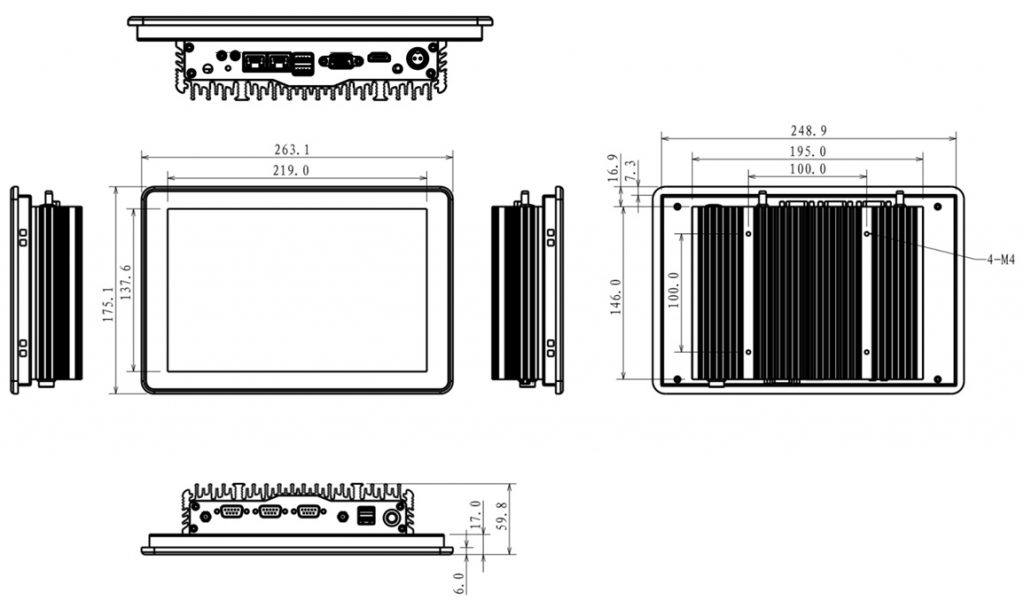

Dimensions

Packing List Ordering Information
1x KLD-1062E KLD-1062E-1: Projected Capacitive Touch Version
1x Driver CD Operating Systems
1x Power Adapter WIN7 32bit 64bit ENG/CN
Optional accessories WIN8 32bit 64bit ENG/CN
VESA Bracket WIN10 32bit 64bit ENG/CN
Power Cable 2-pin 200cm Linux Ubuntu 12.04/16.04/18.04
