Feature
Intel Kabylake-U Core I3/I5 CPU
1* DDR4 2133Mhz SO-DIMM, max 16GB1*SATA 2.5inch SSD, 1* mSATA SSD socket
HDMI+VGA Dual Display
Wireless Design
Aluminum Chassis, Fanless Design
Product description

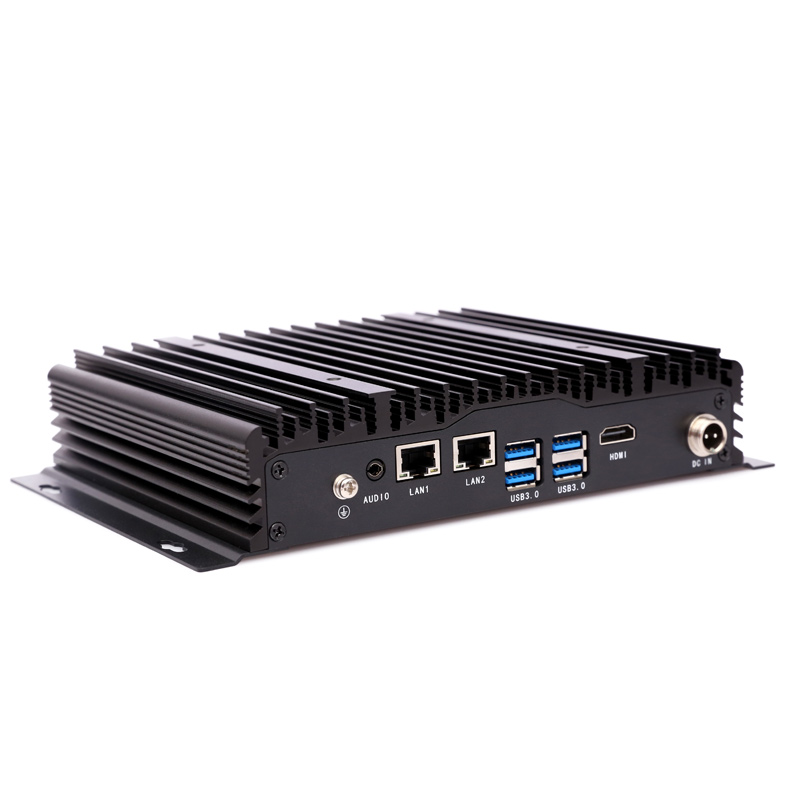

UPC-208A is an industrial PC equipped with an Intel® Kabylake-U Core I3/I5 processor. Meeting the demands of harsh environments, the fanless design makes the UPC-208A extra reliable for applications in the machine building industry. In addition, the dual GbE LAN, 3 x serial ports, 4 x USB ports, make device connection and integration easy.
Specifications
|
Processor |
CPU |
Intel® i3-7100U Dual Core up to 2.40 GHz 3M Cache, TDP 15W |
|
Cooling System |
Fanless |
|
|
Memory |
1x DDR4 2133Mhz SO-DIMM Sockets, up to 16GB |
|
|
Storage |
mSATA SSD Full Size + SATA 2.5 inch SSD |
|
|

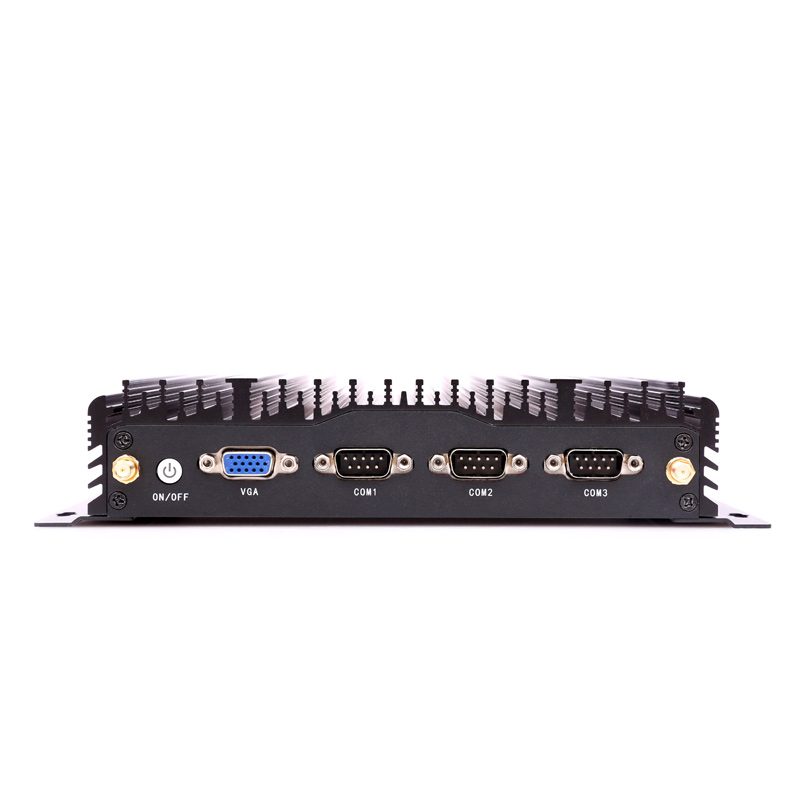

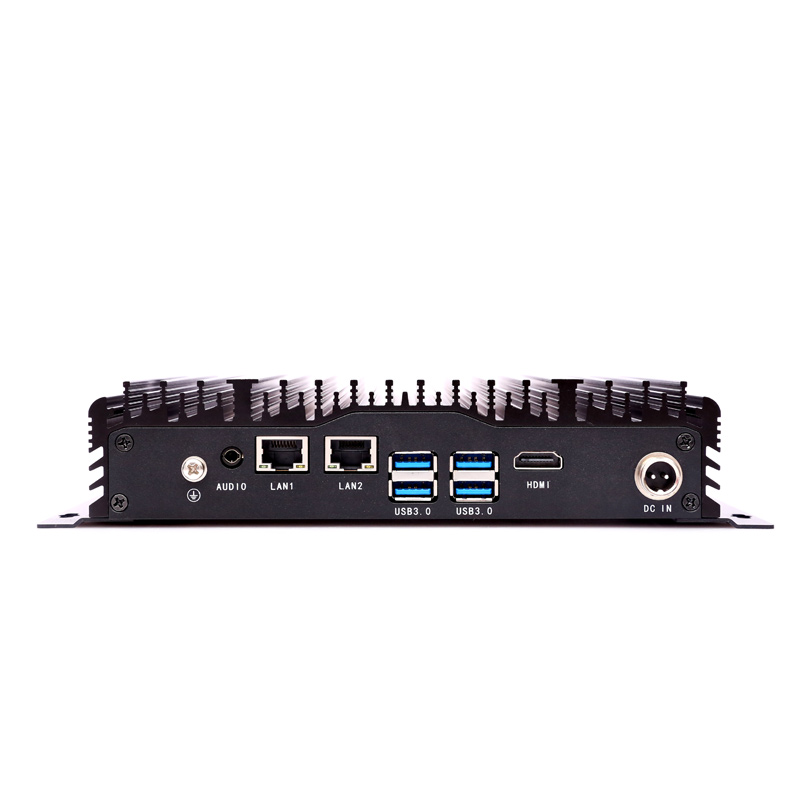

I/O ports |
USB: 4xUSB3.0, Type-A |
|
|
COM: 3xRS232, DB9 |
||
|
Dual Display: 1xHDMI (1920*1200 @30Hz) |
||
|
Audio: 1x Line-out |
||
|
WIFI: 802.11a/g/n, 2×2 Antenna, 2.4/5 GHz, 300 Mbps Max Speed |
||
|
Network(LAN) |
2x Intel i211 10/100/1000Mbps Ethernet |
|
|
Power |
Input Voltage |
12V DC (2 pin Aviation Connector) , optional 9V-36V DC |
|
Control SW |
1xPower SW (Rear), AT/ATX optional |
|
|
OS Support |
OS Support |
Microsoft Windows 7/ Windows 8/ Windows 10/ Linux |
|
Environment |
Operating Temperature |
0℃～50℃ (extend temperature optional) |
|
Storage Temperature |
-10℃～60℃ (extend temperature optional) |
|
|
Mechanical |
Dimensions |
(W*D*H): 195*158*42.8mm |
|
Weight |
N.W. 1.73KG |
|
|
Color |
Black |
|
|
Material |
High Strength Aluminum Alloy |
|
|
|
Certification |
CE / UL / RoHS |
|
Custom Service |
Custom Service |
Custom BIOS, System Encryption, Custom LOGO |
