- Intel Baytrail Celeron J1900 2.0-2.4GHz CPU
- ·Memory up to 8GB DDR3
·1*SATA 2.5inch SSD, 1* mSATA SSD socket
·Wireless Design
·Aluminum Chassis, Fanless Design
·DC 9~36V Wide Power Input

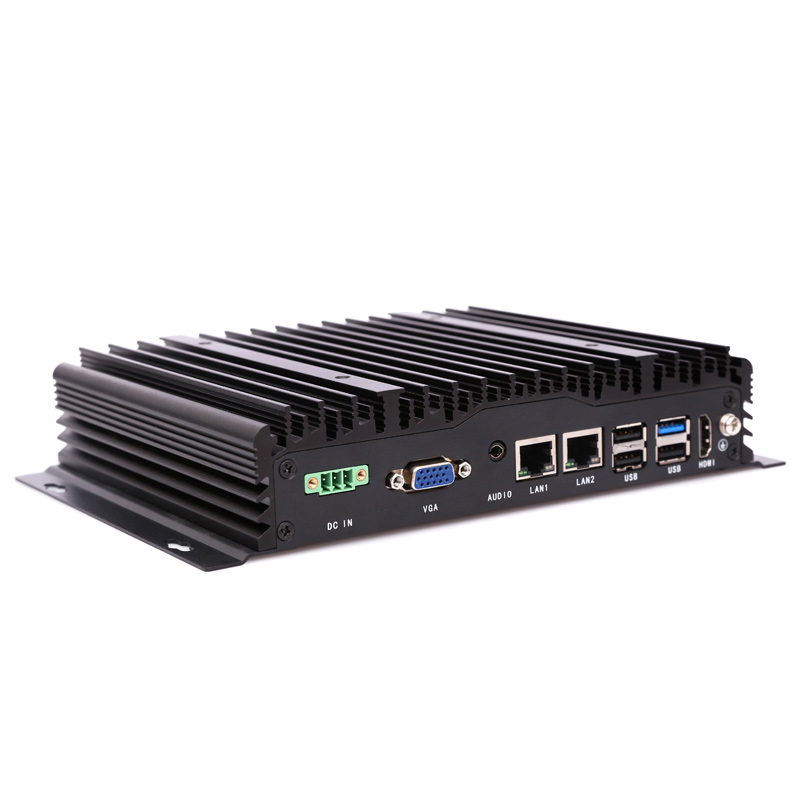

UPC-206A is a compact dimension industrial computer with an Intel® J1900 processor, dual GbE LAN, 3 x COM ports, 6 x USB ports, 1xmSATA bay. DC 9-36V wide power input, wide operating temperature, economic and reliable, it will be fit for IOT terminal and manufacture application.
|
Processor |
CPU |
Intel Baytrail-D Celeron J1900, 2.0~2.42GHz, 4cores, 4threads, 2M cache, 22nm,TDP 10W |
|
Cooling System |
Fanless |
|
|
Memory |
Single Socket, 4GB-8GB DDR3L |
|
|
Storage |
mSATA SSD Full Size + SATA 2.5 inch SSD |
|
|
I/O ports |
5xUSB2.0+1xUSB3.0, Type-A |
|
|
COM: 3xRS232, DB9, 2*RS485 optional |
||
|
Dual Display: 1xHDMI (1920*1200 @30Hz) |
||
|
Audio: 1xMic-in, 1x Line-out |
||
|
WIFI: 802.11a/g/n, 2×2 Antenna, 2.4/5 GHz, 300 Mbps Max Speed |
||
|
Network(LAN) |
2x Intel I211 10/100/1000Mbps Ethernet |
|
|
Power Supply |
Input Voltage |
12V DC (3 Pin Phoenix Connector) , optional 9V-36V DC |
|
Control SW |
Control SW |
1xPower SW (Rear), AT/ATX optional |
|
OS Support |
OS Support |
Windows 7, Windows 8.1, Windows 10, Linux Ubuntu |
|
Environment |
Operating Temperature |
0℃～50℃ (extend temperature optional) |
|
Storage Temperature |
-10℃～60℃ (extend temperature optional) |
|
|
Mechanical |
Dimensions |
(W*D*H): 195*158*42.8mm |
|
Weight(G.W.) |
N.W. 1.7KG |
|
|
Color |
Black |
|
|
Material |
High Strength Aluminum Alloy |
|
|
Certification |
CE / UL / RoHS |
