Features
· Embedded Intel 7th Core i3 i5 i7 Processor
· 17inch LED Panel with capacitive touchscreen
· System memory up to 16GB DDR4
· 2xHDMI Dual Display
· Fanless design and low power consumption
· Front Panel IP65 Level
· Supports Win 7/ Win 8/ Win 10/ Linux OS
Download：KLD-1782A PDF
Product description
KLD-1782A is an intelligent, fanless panel PC, 17″ Panel PC equipped with an Intel® 7th Gen Core i3 i5 processor. Meeting the demands of harsh environments, in addition, the dual GbE LAN, 4 x serial ports, 4 x USB ports, make device connection and integration easy.
Specifications
| CPU | Intel® i3-7100U Dual Core up to 2.40 GHz 3M Cache, TDP 15W Intel® i5-7200U Dual Core up to 3.10 GHz 3M Cache, TDP 15W Intel® i7-7500U Dual Core up to 3.50 GHz 4M Cache, TDP 15W |
| Cooling System | Fanless |
| Memory | 2GB-16GB DDR4 |
| Storage | mSATA SSD full size+ SATA 2.5’’ HDD |
| USB | 4xUSB3.0 |
| COM | 4xRS232, optional 6xRS232 |
| Dual Display | 2xHDMI |
| Audio | 1xLine-out |
| Expansion | MINI-PCIE |
| Network(LAN) | 2x 10/100/1000Mbps Ethernet |
| Input Voltage | 12VDC(Aviation Connector) , optional 9V-36V DC |
| Display Type: | 17inch TFT LED Panel( LED Backlight) |
| Max. Resolution: | 1280×1024 / 4:3 |
| Luminance(cd/㎡) | 300nits |
| Touch Type | Capacitive Touch |
| OS Support | MicrosoftWindows 7/ Windows 8/ Windows 10/ Linux |
| Operating Temperature | -10℃～60℃(14~ 140 °F)(extend temperature optional) |
| Storage Temperature | -20℃～70℃(-4 ~ 158 °F) |
| Front Panel Protection | IP65 compliant |
| Dimensions | 395.4×327.5×73.7mm ; cutout dimension: 374.6*306.7mm |
| Weight | 7.5KG |
| Color | Black |
| Material | Aluminum + SUS |
| Custom Service | Custom BIOS, System Encryption, Custom LOGO |

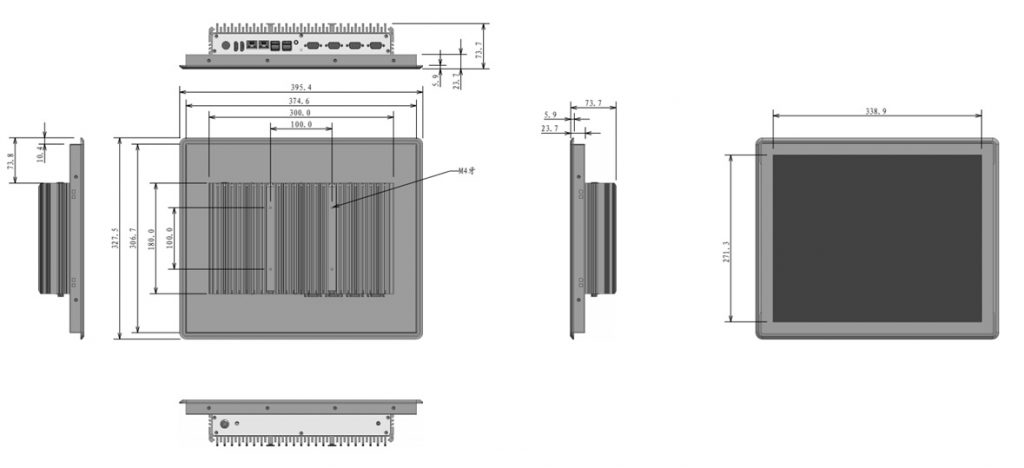

Dimensions
| Packing List | Ordering Information |
| 1x KLD-1782A | KLD-1782A: Projected Capacitive Touch Version |
| 1x Driver CD | |
| 1x Power Adapter | Operating Systems |
| Optional accessories | WIN7 32bit 64bit ENG/CN |
| VESA Bracket | WIN8 32bit 64bit ENG/CN |
| Power Cable 2-pin 200cm | WIN10 32bit 64bit ENG/CN |
