Features
· Embedded Intel Bay Trail J1900 Processor
· 17inch LED Panel with capacitive touchscreen
· System memory up to 4GB DDR3
· HDMI+VGA Dual Display
· Fanless design and low power consumption
· Front Panel IP65 Level
· Supports Win 7/ Win 8/ Win 10/ Linux OS
Download：KLD-1762A PDF
Product description
KLD-1762A is an intelligent, fanless panel PC, 17″ Panel PC equipped with an Intel® Bay Trail processor. Meeting the demands of harsh environments, in addition, the dual GbE LAN, 4 x serial ports, 4 x USB ports, make device connection and integration easy.
Specifications
| CPU | Intel Baytrail-D Celeron J1900, 2.0~2.42GHz, 4cores, 4threads, 2M cache, 22nm,TDP 10W |
| Cooling System | Fanless |
| Memory | Onboard DDR3L, max 4GB |
| Storage | 1*mSATA SSD Full Size |
| USB | 3xUSB2.0+1xUSB3.0, Type-A |
| COM | 4xRS232, DB9, 2*RS485 optional |
| Dual Display | 1xHDMI (3840*2160 @30Hz) ; 1*VGA (1920*1200 @30Hz) |
| Audio | 1×Mic-in, 1x Line-out |
| Expansion | MINI-PCIE |
| Network(LAN) | 2x 10/100/1000Mbps Ethernet |
| Input Voltage | 12V DC(Aviation Connector) , optional 9V-36V DC |
| Control SW/LED | Power Button, AT & ATX Model |
| Display Type: | 17inch TFT LED Panel( LED Backlight) |
| Max. Resolution: | 1280×1024 / 4:3 |
| Luminance(cd/㎡) | 300nits |
| Touch Type | Capacitive Touch |
| OS Support | Windows 7/ Windows 8/ Windows 10/ Linux |
| Operating Temperature | -10℃～60℃(14~ 140 °F)(extend temperature optional) |
| Storage Temperature | -20℃～70℃(-4 ~ 158 °F) |
| Front Panel Protection | IP65 compliant |
| Dimensions | 395.4×327.5×73.4mm ; cutout size: 374.6×306.7mm |
| Weight | 7.2KG (N.W.) |
| Color | Black |
| Material | Aluminum + SUS |
| Custom Service | Custom BIOS, System Encryption, Custom LOGO |

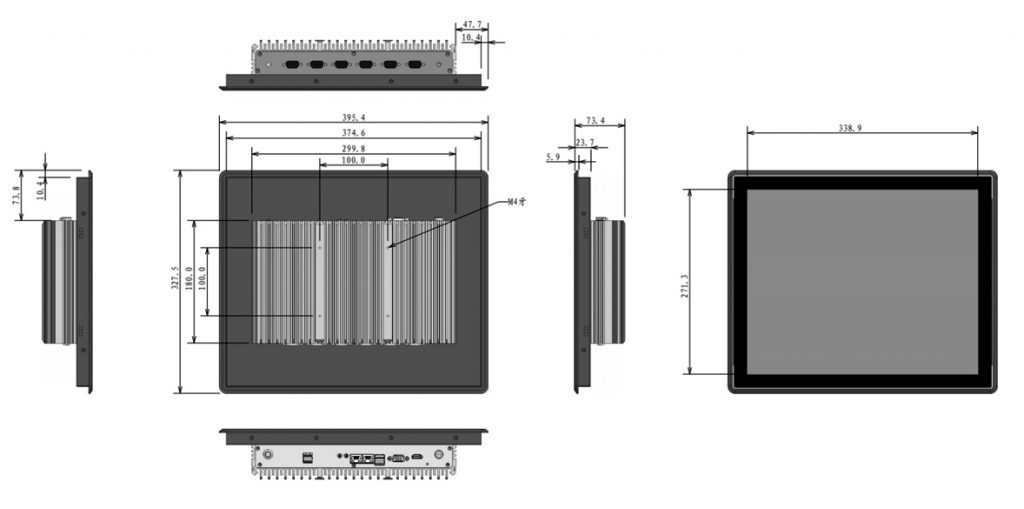

Dimensions
| Packing List | Ordering Information |
| 1x KLD-1762A | KLD-1762A: Projected Capacitive Touch Version |
| 1x Driver CD | |
| 1x Power Adapter | Operating Systems |
| Optional accessories | WIN7 32bit 64bit ENG/CN |
| VESA Bracket | WIN8 32bit 64bit ENG/CN |
| Power Cable 2-pin 200cm | WIN10 32bit 64bit ENG/CN |
