Features
· Intel 7th Gen Core Processor
· 15.6inch LED Panel with capacitive touchscreen
· System memory up to 16GB DDR4
· 2xHDMI Dual Display
· Aluminum die-casting chassis, fanless design
· Front Panel IP65 Level
· Supports Win 7/ Win 8/ Win 10/ Linux OS
Download：KLD-1582K PDF
Product description

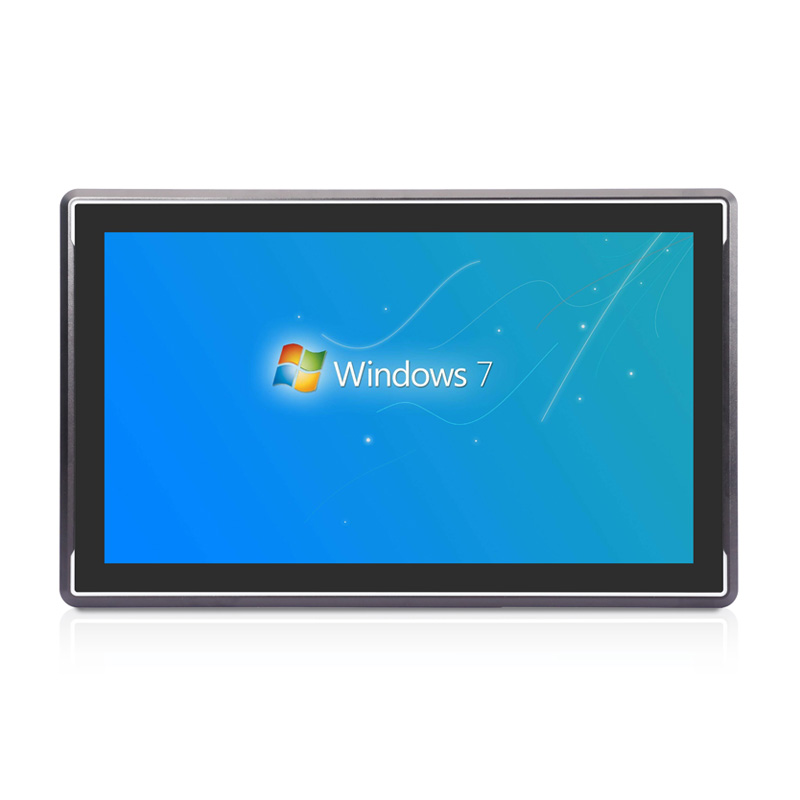

KLD-1582K is an intelligent, fanless panel PC, 15.6″ Panel PC equipped with an Intel® 7th Gen Core i3 i5 i7 processor. Meeting the demands of harsh environments, in addition, the dual GbE LAN, 4 x serial ports, 4 x USB ports, make device connection and integration easy.
Specifications
| CPU | Intel® Celeron 3855U Dual Core up to 3855U, TDP 15W Intel® i3-7100U Dual Core up to 2.40 GHz 3M Cache, TDP 15W Intel® i5-7200U Dual Core up to 3.10 GHz 3M Cache, TDP 15W Intel® i7-7500U Dual Core up to 3.50 GHz 4M Cache, TDP 15W |
| Cooling System | Fanless |
| Memory | 1x DDR4 2133Mhz SO-DIMM Sockets, up to 16GB |
| Storage | mSATA SSD+2.5’’ HDD |
| USB | 4xUSB3.0 (Type-A) |
| COM | 4*RS232 (2*RS485 optional), up to 6, support 5V/12V, DB9 |
| Dual Display: | 2*HDMI (1920*1080 @30Hz) |
| Audio | 1xLine-out |
| Expansion | MINI-PCIE |
| Network(LAN) | 2x Intel i211 10/100/1000Mbps Ethernet |
| Input Voltage | 12V DC(Aviation Connector) , optional 9V-36V DC |
| Control SW | 1xPower SW, AT/ATX optional |
| Display Type: | 15.6inch TFT LED Panel( LED Backlight) |
| Max. Resolution: | 1920×1080 / 16:9 |
| Luminance(cd/㎡) | 300nits |
| Touch Type | Projected Capacitive Touch |
| OS Support | MicrosoftWindows 7/ 8/ 10/ Linux |
| Operating Temperature | -10℃～60℃(14~ 140 °F)(extend temperature optional) |
| Storage Temperature | -20℃～70℃(-4 ~ 158 °F) |
| Front Panel Protection | IP65 compliant |
| Dimensions | 396.5(L)x246(W)x69.5(H)mm ; cutout dimension: 379.2(L)x228.7(W)mm |
| VESA | mount: 100x100mm |
| Weight | 6KG N.W. |
| Color | Black |
| Material | Aluminum + SUS |
| Custom Service | Custom BIOS, System Encryption, Custom LOGO |
Dimensions
| Packing List | Ordering Information |
| 1x KLD-1582K | KLD-1582K: Projected Capacitive Touch Version |
| 1x Driver CD | Operating Systems |
| 1x Power Adapter | WIN7 32bit 64bit ENG/CN |
| Optional accessories | WIN8 32bit 64bit ENG/CN |
| VESA Bracket | WIN10 32bit 64bit ENG/CN |
| Power Cable 2-pin 200cm | Linux Ubuntu 12.04/16.04/18.04 |
