Features
• Intel Celeron 7th Gen Core i3 i5 Processor
• 10inch LED Panel with capacitive touchscreen
• System memory up to 16GB DDR4
• 2xHDMI Dual Display
• Aluminum die-casting chassis, fanless design
• Front Panel IP65 Level
• Supports Win 7/ Win 8/ Win 10/ Linux OS
Download:KLD-1082B PDF
Product description
KLD-1082B is an intelligent, fanless panel PC, 10″ Panel PC equipped with an Intel® 7th Gen Core i3 i5 processor. Meeting the demands of harsh environments, in addition, the dual GbE LAN, 4 x serial ports, 4 x USB ports, make device connection and integration easy.
Specifications
CPU | Intel® i3-7100U Dual Core up to 2.40 GHz 3M Cache, TDP 15W Intel® i5-7200U Dual Core up to 3.10 GHz 3M Cache, TDP 15W |
Cooling System | Fanless |
Memory | 1x DDR4 SO-DIMM Sockets, up to 16GB |
Storage | 1x mSATA SSD, Full Size |
USB | 4xUSB3.0, Type-A |
COM | 4xRS232,DB9, optional 6xRS232 |
Dual Display | 2xHDMI (3840*2160 @30Hz) |
Audio: | 1xLine-out |
Optional | WIFI, 802.11a/g/n, 2×2 Antenna, 2.4/5 GHz, 300 Mbps Max Speed |
Network(LAN) | 2x 10/100/1000Mbps Ethernet |
Input Voltage | 12V DC (2 Pin Aviation Connector) , optional 9V-36V DC |
Display Type | 10inch TFT LED Panel( LED Backlight) |
Max. Resolution | 1024×768 / 4:3 |
Luminance(cd/㎡) | 300-1000nits |
Touch Type | Projected Capacitive Touch |
OS Support | MicrosoftWindows 7/ Windows 8/ Windows 10/ Linux |
Operating Temperature | -10℃~60℃(14~ 140 °F)(extend temperature optional) |
Storage Temperature | -20℃~70℃(-4 ~ 158 °F) |
Front Panel Protection | IP65 compliant |
Dimensions | 260.5×207.7x59mm ; cutout dimensions 248x192mm |
Weight | 2.58KG N.W. |
Color | Black |
Material | Aluminum |
Custom Service | Custom BIOS, System Encryption, Custom LOGO |

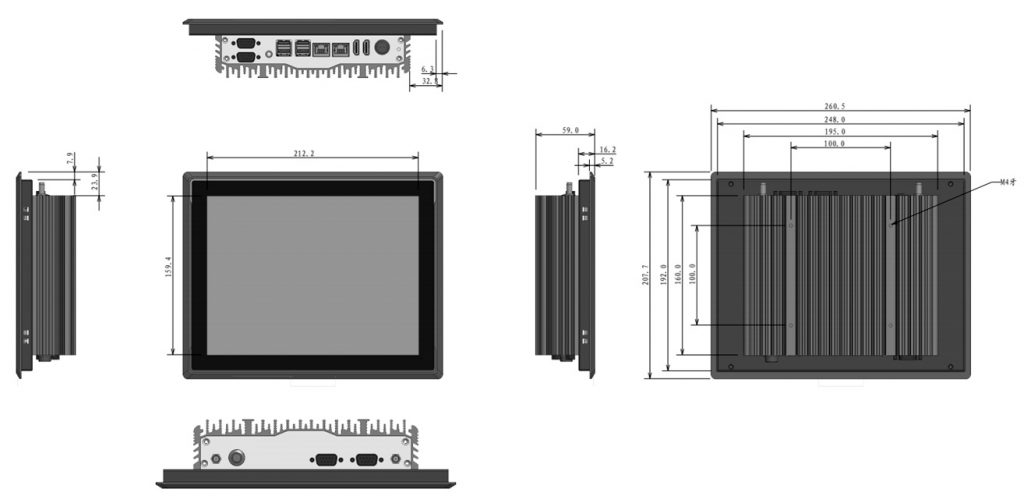

Dimensions

Packing List | Ordering Information |
1x KLD-1082B | KLD-1082B-1: i3-7100U Version |
1x Driver CD | KLD-1082B-2: i5-7200U Version |
1x Power Adapter | Operating Systems |
Optional accessories | WIN7 64bit EN/CN |
VESA Brackets | WIN8 64bit EN/CN |
Power Cable 2-pin 200cm | WIN10 64bit EN/CN |
Linux Ubuntu 12.04/16.04/18.04 |
