Features
Intel Baytrail Celeron J1900 2.0-2.4GHz CPU
7inch LED Panel with Capacitive touchscreen
Onboard memory up to 4GB DDR3
1VGA, 1 HDMI, Dual independent display
Aluminum die-casting chassis, fanless design
Front Panel IP65 Level
Supports Win 7/ Win 8/ Win 10/ Linux OS
Download:KLD-0762A PDF
Product description

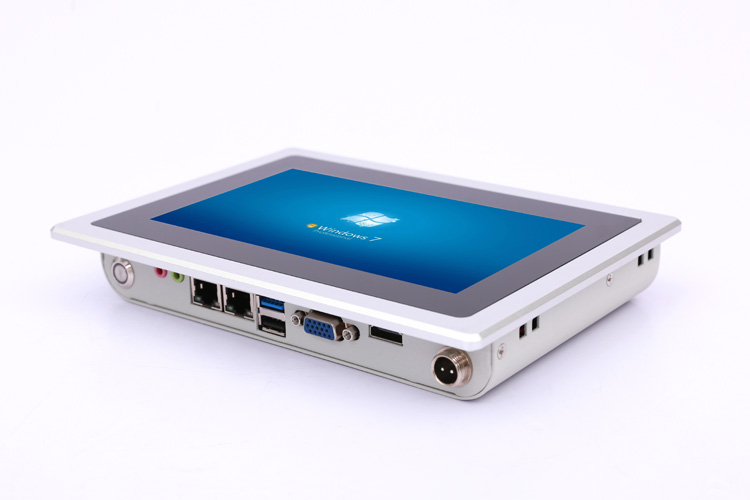

KLD-0762A is anintelligent, fanless panel PC, 7″ Panel PC equipped with an Intel® Celeron J1900 processor. Meeting the demands of harsh environments, in addition, the dual GbE LAN, 3 x serial ports, 4 x USB ports, make device connection and integration easy.
Specifications
CPU | Intel Baytrail-D Celeron J1900, 2.0~2.42GHz, 4cores, 4threads, 2M cache, 22nm,TDP 10W |
Cooling System | Fanless |
Memory | Onboard DDR3L, max 4GB |
Storage | 1*mSATA SSD Full Size |
USB | 3xUSB2.0+1xUSB3.0, Type-A |
COM | 2xRS232, DB9 ; 1*RS485, DB9, ( 12V DC power supply optional ) |
Dual Display | 1xHDMI (1920*1200 @30Hz) ; 1*VGA (1920*1200 @30Hz) |
Audio | 1×Mic-in, 1x Line-out |
Expansion | MINI-PCIE |
Network(LAN) | 2x Intel i211 10/100/1000Mbps Ethernet |
Input Voltage | 12V DC (2 Pin Aviation Connector) , optional 9V-36V DC |
Display Type | 7inch TFT LED Panel, active size (L*H) 153.4x92mm |
Max. Resolution | 1024×600 / 16:9 |
Luminance(cd/㎡) | 300nits |
Touch Type | Projected Capacitive Touch |
OS Support | MicrosoftWindows 7/ Windows 8/ Windows 10/ Linux |
Operating Temperature | -10℃~60℃(14~ 140 °F)(extend temperature optional) |
Storage Temperature | -20℃~70℃(-4 ~ 158 °F) |
Front Panel Protection | IP65 compliant |
Dimensions | (L*W*H): 209x154x35.4mm, cutout size (L*H) 196.2×139.6mm |
Weight | N.W. 1.35KG |
Color | Sliver |
Material | High Strength Aluminum Alloy |
Certification | CE / CCC |
Custom Service | Custom BIOS, System Encryption, Custom LOGO |

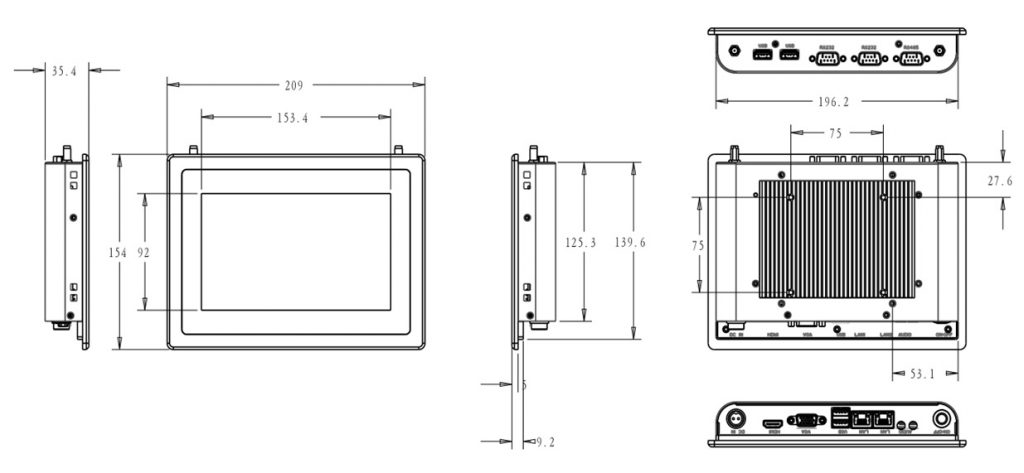

Dimensions




Packing List | Ordering Information |
1x KLD-0762A | KLD-0762A: Capacitive Touch Version |
1x Driver CD | Operating Systems |
1x Power Adapter (12V 5A) | WIN7 32bit 64bit EN/CN |
VESA Bracket & Buckles | WIN8 32bit 64bit EN/CN |
Optional accessories | WIN10 32bit 64bit EN/CN |
Power Cable 2-pin 200cm | Linux Ubuntu 12.04/16.04/18.04 |
