Features
· Aluminum die-casting chassis, fanless design
· 10inch LED TFT LCD, capacitive touch
· Intel Baytrail Celeron J1900 2.0-2.42G CPU
· 2*LAN, 3*USB2.0, 1*USB3.0, 1*COM
· 13.56MHZ RFID
· AT & ATX Model
· Front Panel IP65 Level
· DC 9~36V power
Download：KLD-1062B PDF
Product description
KLD-1062BC is a intelligent, fanless panel PC, 10″ Panel PC equipped with an Intel® Bay Trail J1900 processor. Meeting the demands of harsh environments, in addition, the dual GbE LAN, 1xserial ports, 4xUSB ports, 1xRFID module make device connection and integration easy .
Specifications
| CPU | Intel Baytrail-D Celeron J1900, 2.0~2.42GHz, 4cores, 4threads, 2M cache, 22nm,TDP 10W |
| Cooling System | Fanless |
| Memory | Onboard DDR3L, max 4GB |
| Storage | 1*mSATA SSD Full Size+2.5inch HDD |
| USB | 3xUSB2.0+1xUSB3.0, Type-A |
| COM | 1xRS232, DB9, 2*RS485 optional |
| Dual Display | 1xHDMI (1920*1200 @30Hz) ;1*VGA (1920*1200 @30Hz) |
| Audio: | 1×Mic-in, 1x Line-out |
| RFID | 1x RFID built in, 13.56MHZ, Front Panel, UHF optional |
| Network(LAN) | 2x 10/100/1000Mbps Ethernet |
| Input Voltage | 12V DC(Aviation Connector) , optional 9V-36V DC |
| Control SW/LED | Power Button, AT & ATX Model |
| Display Type: | 10inch TFT LED Panel( LED Backlight) |
| Max. Resolution: | 1024×768 / 4:3 |
| Luminance(cd/㎡) | 300nits |
| Touch Type | Capacitive Touch |
| OS Support | Windows 7/ Windows 8/ Windows 10/ Linux |
| Operating Temperature | -10℃～60℃(14~ 140 °F)(extend temperature optional) |
| Storage Temperature | -20℃～70℃(-4 ~ 158 °F) |
| Front Panel Protection | IP65 compliant |
| Dimensions | (W*H*D): 350x220x39mm; Mounting Cut out (W*H): 330*202mm |
| Weight | 2..8KG (N.W.) |
| Color | Black |
| Material | Aluminum |
| Custom Service | Custom BIOS, System Encryption, Custom LOGO |

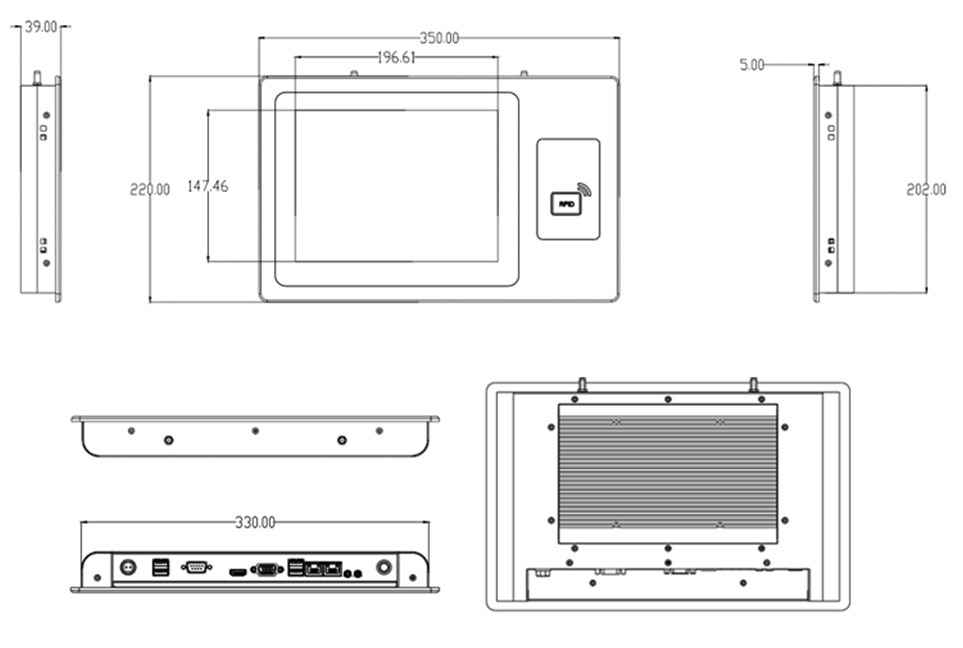

Dimensions
| Packing List | Ordering Information |
| 1x KLD-1062B | KLD-1062B-1: Projected Capacitive Touch Version |
| 1x Driver CD | Operating Systems |
| 1x Power Adapter | WIN7 32bit 64bit ENG/CN |
| VESA Bracket | WIN8 32bit 64bit ENG/CN |
| Optional accessories | WIN10 32bit 64bit ENG/CN |
| Power Cable 2-pin 200cm | Linux Ubuntu 12.04/16.04/18.04 |
